Description:

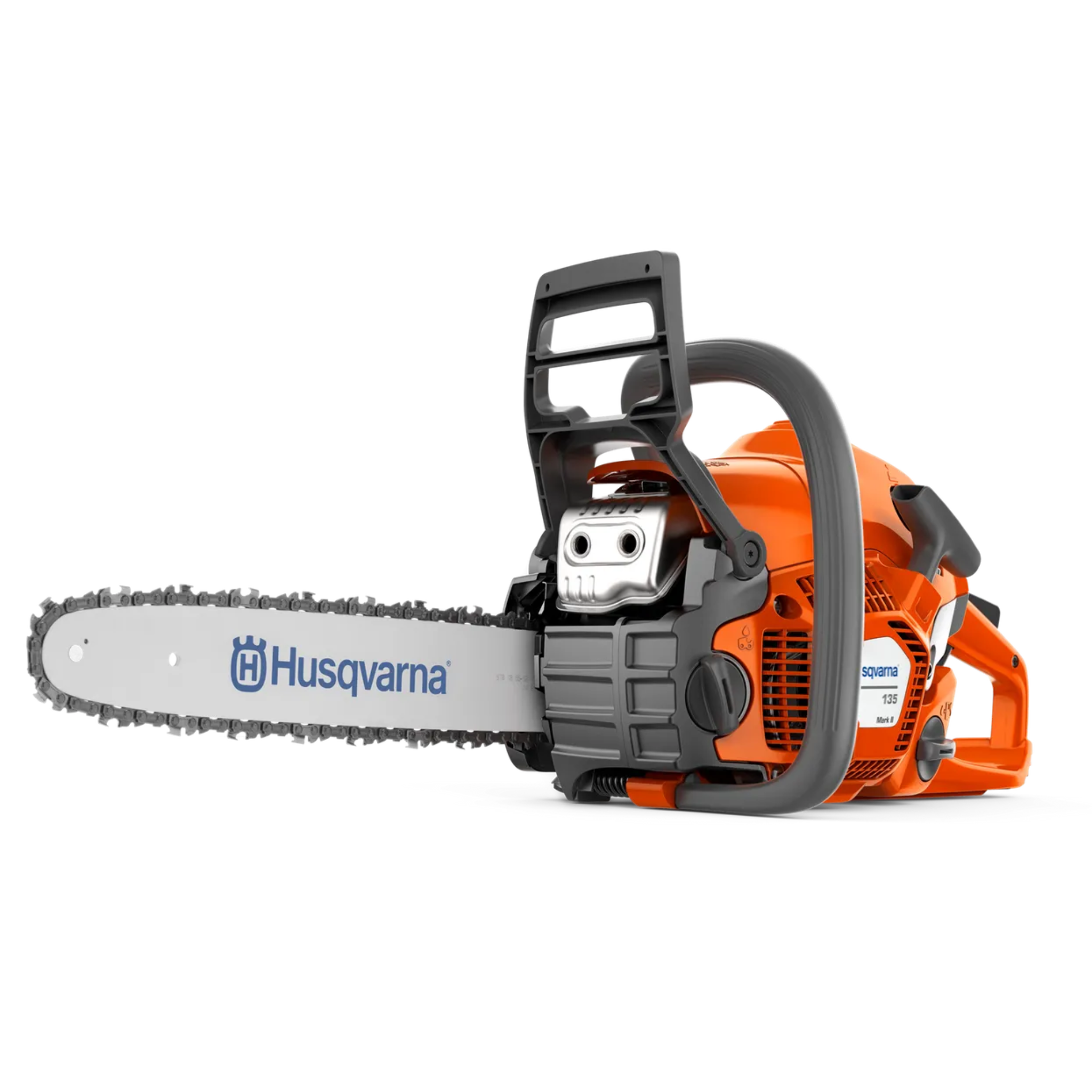

Get the job done the first time with the Husqvarna 135 Mark II. This reliable gas saw features Smart Start® and LowVib® technology for easy, comfortable use. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter.

Features:

Powerful and Efficient X-TORQ® Engine:

• X-Torq® engine technology reduces emissions and fuel consumption, while providing high torque over a wide RPM range.

LowVib® Technology:

• Effective vibration dampeners integrated into the handles reduce vibrations, enhancing user comfort and reducing fatigue during extended use.

Smart Start® Technology:

• Engine and starter system designed for quick and easy starting with minimal effort, ensuring the chainsaw starts reliably each time.

Quick Start with Air Purge:

• Air purge feature removes air from the carburetor and fuel system, facilitating easier starting of the chainsaw.

Simple Starting:

• Stop switch automatically resets to the ON position after shutdown, simplifying starting procedures for subsequent uses.

Air Injection™ Technology:

• Centrifugal air cleaning system separates larger dust and debris particles before they reach the air filter, improving engine durability and longevity.

Combined Choke/Stop Control:

• Simplifies starting process by integrating choke and stop functions into a single control, reducing the risk of engine flooding.

Inertia-Activated Chain Brake:

• Safety feature that reduces the risk of injury from kickback by stopping the chain when a sudden upward movement occurs.

Side Chain Tensioning:

• Quick and easy adjustment of the chain tension without needing tools, ensuring optimal cutting performance.

Specification:

Engine:

• SKU: 967 86 18-16
• Chain Speed at Max Power: 55 feet per second
• Cylinder Displacement: 38 cm³
• Output Shaft Power: 2.1 hp (horsepower)
• Maximum Torque: 1.84 Nm at 8,000 rpm
• Clutch Engagement Speed: 4,000 rpm (±120)
• Electrode Gap: 0.022 inches
• Idling Speed: 3,000 rpm
• Ignition Module Air Gap: 0.012 inches
• Maximum Power Speed: 9,000 rpm
• Oil Pump Type: Automatic
• Spark Plug: NGK BPMR7A

Equipment:

• Recommended Bar Length (Minimum): 14 inches
• Recommended Bar Length (Maximum): 16 inches
• Pitch: 3/8" mini
• Chain Type: S93G
• Bar Length: 40 cm (16 inches)
• Sprocket Type: Spur 6
• Gauge: .050 inches

Dimensions:

• Weight (Excluding Cutting Equipment): 10.36 lbs

Sound and Noise:

• Sound Pressure Level at Operator's Ear: 102 dB(A)
• Sound Power Level, Guaranteed (LWA): 116 dB(A)
• Sound Power Level, Measured: 114.34 dB(A)

Vibration:

• Equivalent Vibration Level (ahv, eq) Rear Handle: 5.5 m/s²
• Equivalent Vibration Level (ahv, eq) Front Handle: 3.72 m/s²

Lubricant:

• Oil Tank Volume: 0.549 US pint
• Lubricant Type (Engine): Husqvarna 2-stroke oil or equivalent at 50:1 ratio

Emission:

• Exhaust Emissions (CO₂ EU V): 804 g/kWh
