Description

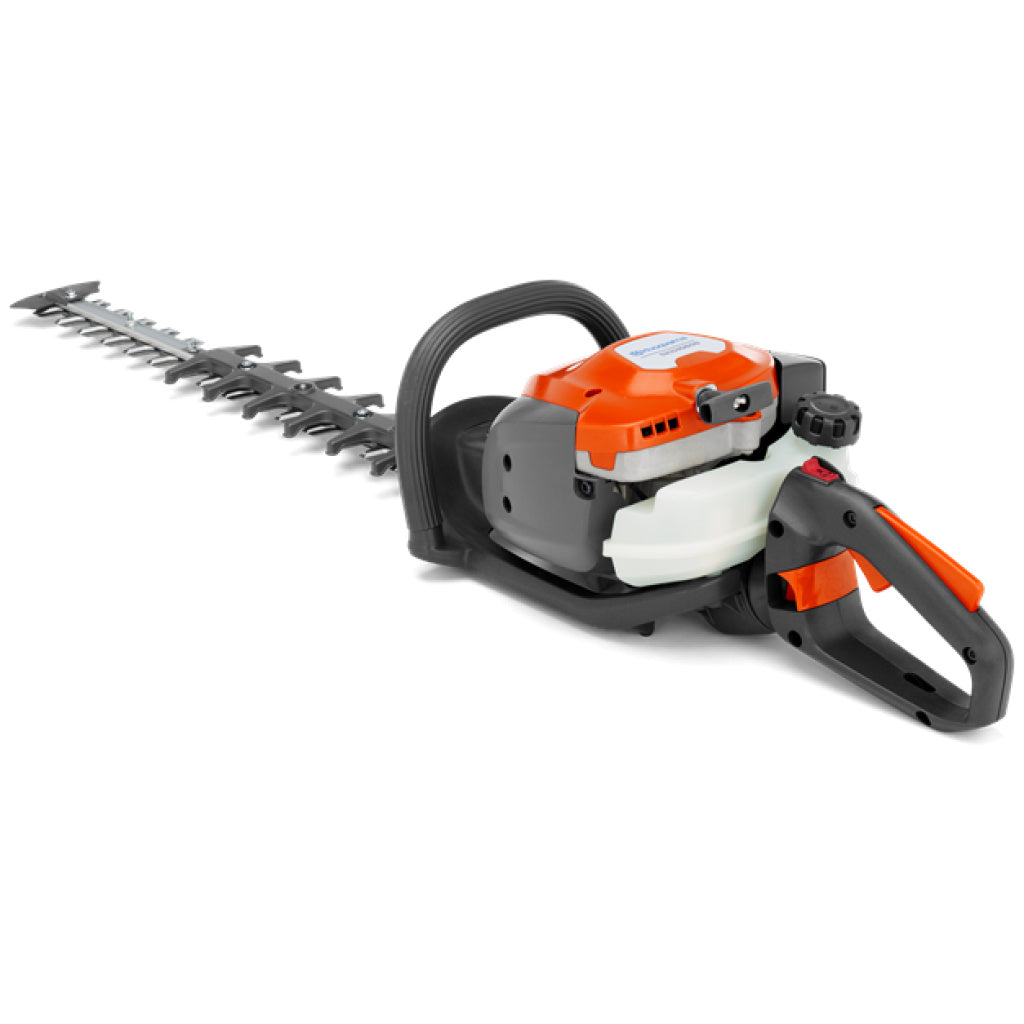

522HD60S

A robust, 21.7cc, double-sided hedge trimmer with a 24" cutter bar for trimming jobs. Reliable and durable construction guarantee long maintenance and service intervals. The multi-position handle and low weight provide excellent handling, while the high capacity, professional knife blades, open blade guard and impressive power output allows for high productivity.

Specification:

Capacity:

• Cutting speed: 4,400 cuts/min

Engine:

• Cylinder displacement: 1.3 cu.inch
• Output shaft power: 0.8 hp
• Fuel tank volume: 15.2 fl oz
• Fuel consumption: 620 g/kWh
• Maximum power speed: 7,800 rpm
• Electrode gap: 0.02 in
• Idling speed: 3,000 rpm
• Spark Plug: NGK CMR6A

Equipment:

• Knife length: 24 in
• Teeth opening: 1.2 in

Dimensions:

• Product size length: 43.5 in
• Weight: 11 lbs

Sound and noise:

• Sound power level, guaranteed (LWA): 102 dB(A)
• Sound pressure level at operator's ear: 93 dB(A)

Vibration:

• Equivalent vibration level (ahv, eq) rear handle: 2.5 m/s²
• Equivalent vibration level (ahv, eq) front handle: 2.8 m/s²

Transmission:

• Gear ratio: 4.09

Emission:

• Exhaust emissions (CO₂ EU V): 1,344 g/kWh
